Librating Agricultural
Hands
Conceptual design of electric intelligent terrace harvester, realize mechanization of terraces and improve work efficiency
Background
Special agricultural territories like terrace fields and tea fields are widely distributed in China and the world, but agricultural modernization is difficult because most of today's harvesters are unable to adapt to them.
Barriers of the field
-
Low efficiency
-
Poor bearing capacity on the field
-
The irregular scale of the field
-
Hardness of transportation
Design vsion
A lightweight, clean-energy harvester with flexible operation across various working environments and field sizes, offering intelligent solutions
Dynamic harvest head
Since the width of the terraced fields is not fixed, the existing harvesting heads cannot be operated continuously on the terraces. A multi-segment harvesting head can meet the demand with a simple angle change, and save space when standby.
New harvest structure
The segmented harvest structure makes the use of the machine more flexible. The process of folding, unfolding, and changing open degree is driven by two rods and shafts. It adapts to different widths of field and saves much space when on standby.
Intelligent adaptation
By scanning the width of the field in real time, the harvester can adjust the angle of the harvest head accordingly. It intelligently plans routes by scanning the entire field, optimizing energy consumption, and automatically recharging as needed to ensure the most efficient harvesting process.
Segmented liftable crawler system
Cameras
Ladar scanner & work status indicator
Charge port
Carbon fiber harvest module
Drive indicate light
Handle for fix harvext module
On body control panel with protect lid
Grain conveying channel
Waste out gate
Gredient tinted barn
Grain unloading gate
Drive indicate light

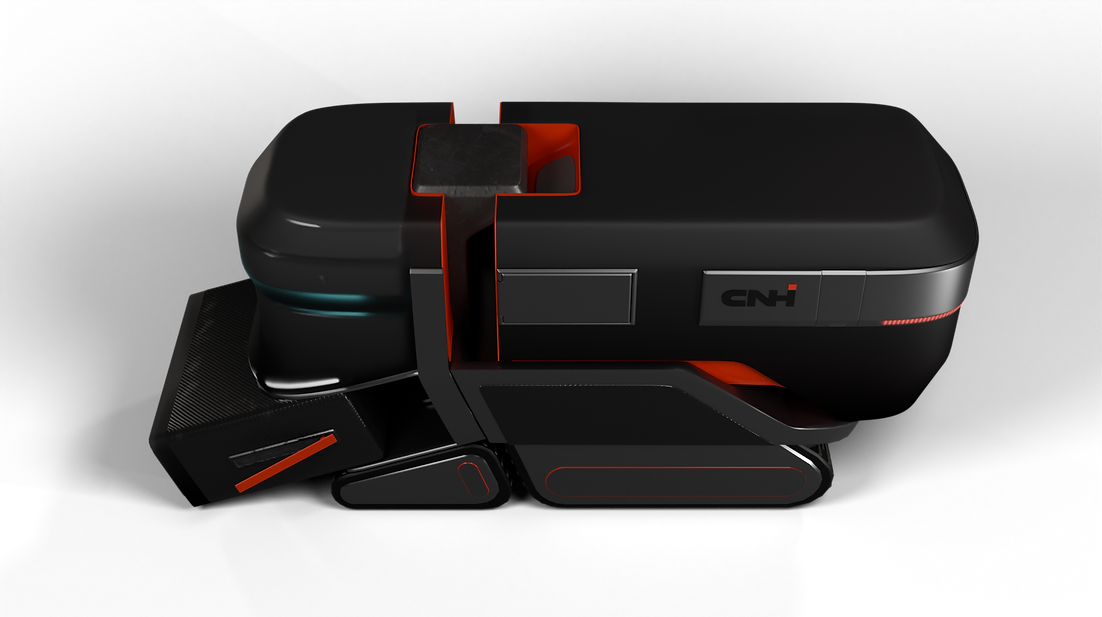

Modularity harvester
Operate the handle on the sides of the harvest module, users can remove or mount a harvest module that has different agricultural features. The modularity design also makes changing grain barns easier and makes the agricultural machine have different capacities and adapt to different work environments.

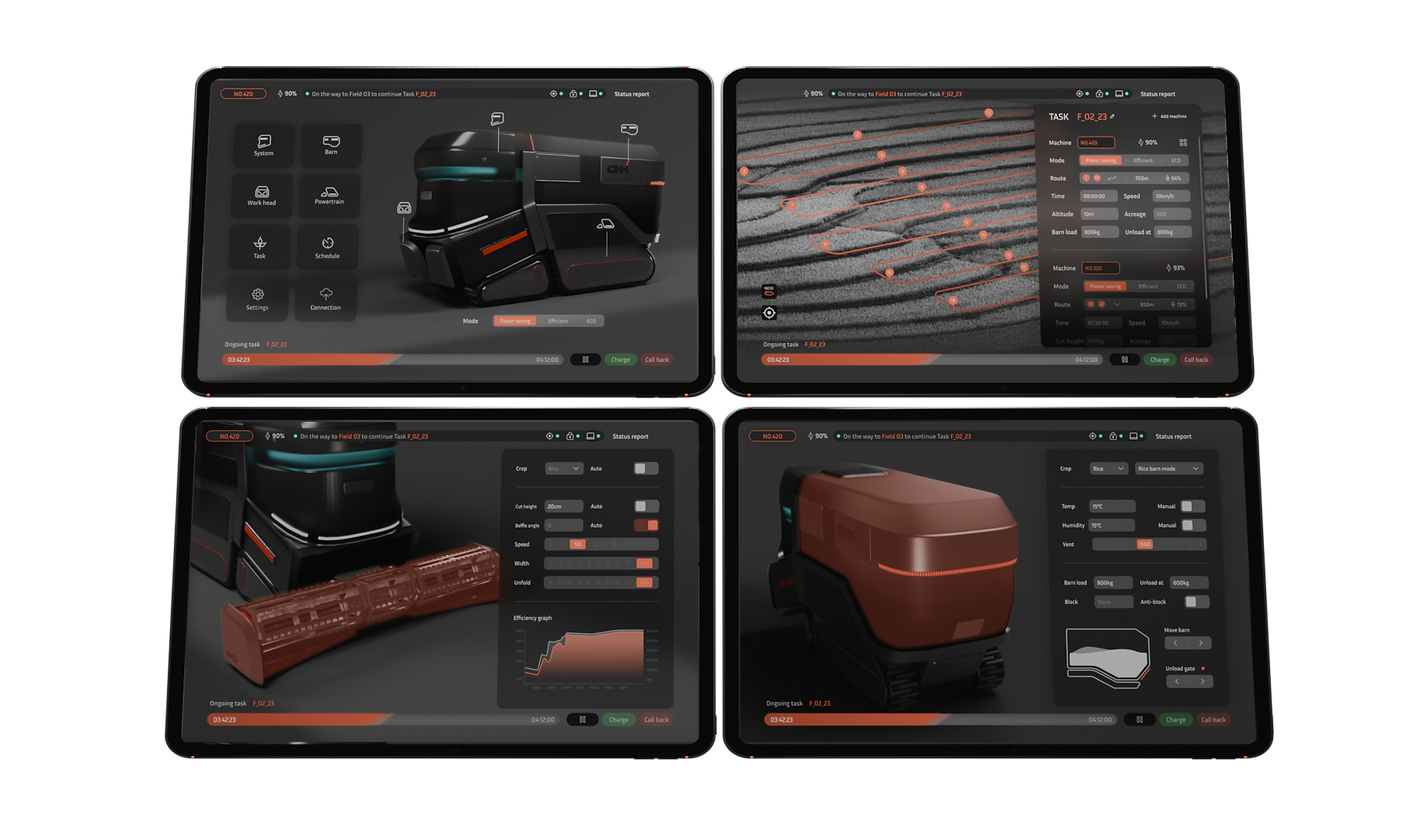

Digital control panel
